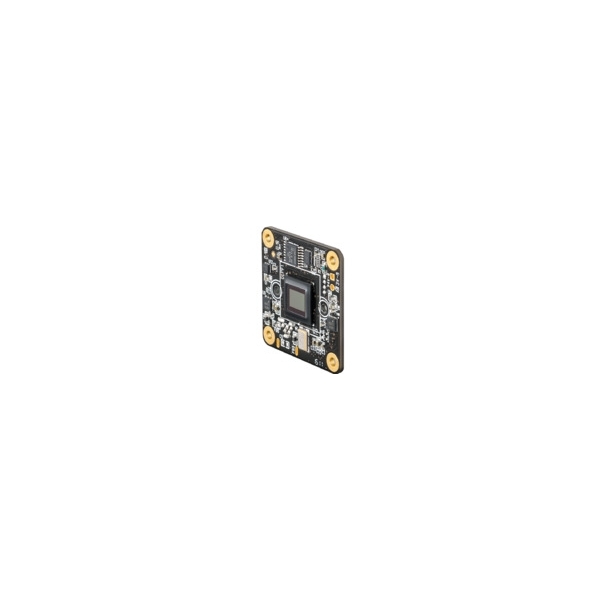

TIS-DFM-22BUC03-ML

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 2.0 color

These cameras are perfect for applications with limited space thanks to their compact size.

Subject to change
General behavior
Dynamic range8 bit
Video formats @ frame rate (maximum)744x480 (0.4 MP) Y800 @ 76 fps
744x480 (0.4 MP) RGB32 @ 76 fps
Interface (optical)
IR cut filter
Sensor typeCMOS
Sensor specification Aptina MT9V024
Shutterglobal
Format1/3 inch
Pixel sizeH: 6 µm, V: 6 µm
Lens mountM12x0.5
Interface (electrical)
InterfaceUSB 2.0 (forwards compatible)
Supply voltage4.5 VDC to 5.5 VDC
Current consumptionapprox 250 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
DimensionsH: 30 mm, W: 30 mm, L: 15 mm
Mass7 g
Adjustments
Shutter1/10,000 s to 1/4 s
Gain0 dB to 18 dB
White balance-6 dB to 6 dB
Environmental
Temperature (operating)-5 °C to 45 °C
Temperature (storage)-20 °C to 60 °C
Humidity (operating)20 % to 80 % (non-condensing)
Humidity (storage)20 % to 95 % (non-condensing)

Write your review

TIS-DFM-22BUC03-ML

TIS-DFM-22BUC03-ML

Card camera or Board camera for artificial vision and industrial imaging The Imaging Source USB 2.0 color

We are the official distributors of The Imaging Source in Spain and Portugal

  • 1/3 inch Micron CMOS sensor (MT9V024)
  • 744x480 (0.4 MP), up to 76 fps
  • Global shutter
  • Trigger and I/O inputs
  • Manufactured by The Imaging Source
  • Windows and Linux software included
