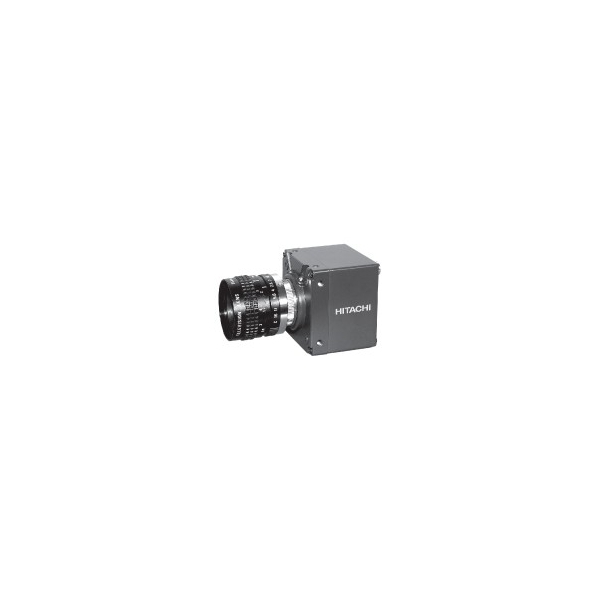

KP-FD30CL

More info
Download
Comments

Imaging device		1/1.8-inch interline CCD
	Total pixels	692 (H)×504 (V)
	Effective pixels	659 (H)×494 (V)
	Pixel size	9.9 µm (H)×9.9 µm (V)(square lattice)
	Color filter	RGB primary color mosaic filter
Sensing area		6.52mm (H)×4.89 mm (V)
Aspect ratio		4 : 3
Frame rate		60 frames per second (full pixel readout)
Scanning frequency		Horizontal: 31.486 kHz Vertical: 59.94 Hz
Sync system		Internal/external (HD/VD auto selection
Lens mount		C/CS mount
Flange focal distance		Adjustable
Video output		Digital output (CameraLink) 24bits (R: 8bit G: 8bit B: 8bit) (Base configuration)
Sensitivity		2,000 lx (F5.6, 100 IRE)
Minimum illumination		10 lx (F1.4, MAX GAIN, 50 IRE)
Signal noise to ratio		50 dB
Electric shutter		High speed : 11 steps, OFF(1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000,1/5000, 1/10000 Low speed : 27 steps, OFF(1/60) , 1/15, 1/10, 1/7.5, 1/6, 1/5, 1/3.75, 1/3, 1/2.5, 1/1.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.5, 7.0, 7.5, 8.0 second AES 1/60 to approx. 1/50,000 second (Response : SLOW NORMAL FAST) VARIABLE Approx. 1H steps from 1/60 to 1/10,000 second
Frame on demand		(A) Fixed shutter (8steps or variable) (B) ONE trigger mode
White balance		ATW / AWC / MANUAL
Power supply voltage		12 V ± 10% DC
Current consumption		Approx. 220 mA
Ambient	Operation	–10 °C to +50 °C, 30 to 80%RH
Ambient	Storage	–20 °C to +60 °C, 20 to 90%RH
Vibration endurance		68.6m/s² (10 to 200Hz, 30 minutes each on XYZ axes)
Shock endurance		490.3m/s² (vertical, horizontal, once each direction)
External dimensions		58 (W)×58 (H)×48 (D) mm (Not including mount protrusions)
Mass		Approx. 220 g
