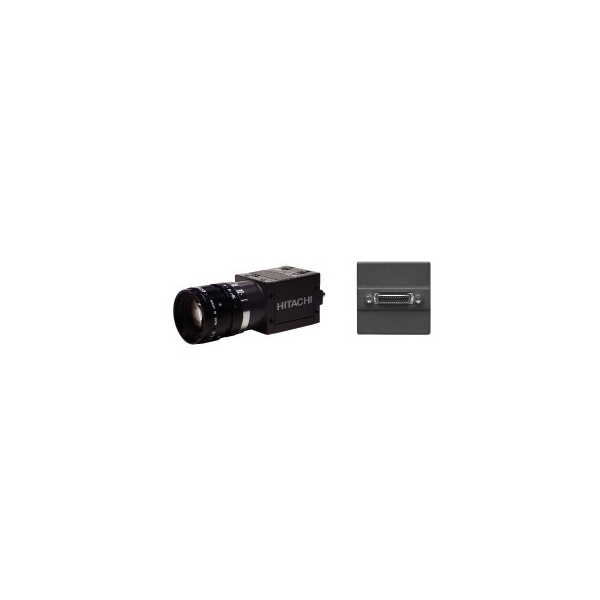

KP-F31SCL

Imaging device1/1.8-inch interline CCD
 Total pixels1688 (H)×1248 (V)
Effective pixels1628 (H)×1236 (V)
Pixel size4.4 µm (H)×4.4 µm (V)(square lattice)
Color filterRGB primary color mosaic filter
Sensing area7.16 mm (H)×5.44 mm (V)
Scanning systemProgressive
Aspect ratio4 : 3
Frame rate30 frames per second (full pixel readout)
Horizontal drive frequency72.0000 MHz
Horizontal scanning frequency37.5 kHz
Vertical scanning frequency29.95 Hz
Sync systemInternal
Lens mountC mount (Flange focal distance = 17.526 mm)
Video outputDigital output (CameraLink) Base configuration: 36.0000 MHz×2 TAP (Note: maximum cable length is 10m) Output image size: 1628(H)×1236(V) (full pixel readout)
ResolutionHorizontal / Vertical: 1200 TV lines
Sensitivity2000 lx, F5.6, 3200 K
Minimum illumination20 lx (F1.4, MAX GAIN)
Signal noise to ratio45 dB
Electric shutterOFF, 1/30, 1/60, 1/125, 1/250, 1/1000, 1/2000, 1/10000, 1/50000 second
OFF is normal exposure (frame rate) or changeable by variable shutter (minimum 1/100000 second)
Gammaγ = 1
Frame on demandMode(A) Fixed shutter mode (8 steps or variable)
(B) ONE trigger mode
Trigger inputCameraLink (CC1) *When Reset control mode CC1 and CC2 are used
Partial scanSelectable start position and height of picture grabbing in 1H step.
Power supply voltage12 ± 1 VDC
Current consumptionApprox. 270 mA (approx. 3.2 W)
*MAX partial scan 1H: Approx. 360 mA (approx. 4.3W)
Ambient temperaturePerformance0 to +40 °C (+32 to +104 °F), less than 90 % RH (without dew condensation)
Operation10 to +50 °C (+14 to 122 °F), less than 90 % RH (without dew condensation)
Storage-20 to +60 °C (-4 to 140 °F), less than 70 % RH (without dew condensation)
Vibration endurance98 m/s² (Acceleration: constant) 10 to 200 Hz, sweep: 10 minutes, XYZ 30 minutes
Shock endurance686 m/s² (Drop test, once each top, bottom, left and right)
External dimensions29 (W)×29 (W)×38 (D) mm (Not including protrusions)
MassApprox. 50 g
