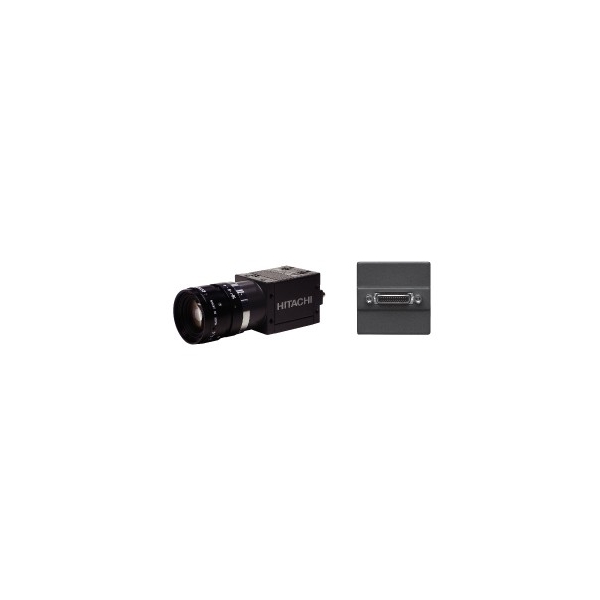

KP-FR31SCL

Imaging device1/3-inch interline CCD
 Total pixels692 (H)×504 (V)
Effective pixels659 (H)×494 (V)
Pixel size7.4 µm (H)×7.4 µm (V) (square lattice)
Color filterRGB primary color mosaic filter
Sensing area4.88 mm (H)×3.66 mm (V)
Scanning systemProgressive
Aspect ratio4 : 3
Frame rate120 frames per second (full pixel readout)
Horizontal drive frequency49.090902 MHz
Horizontal scanning frequency62.937 kHz
Vertical scanning frequency119.88 Hz
Sync systemInternal
Lens mountC mount (Flange focal distance = 17.526 mm)
Video outputDigital output (CameraLink)
Base configuration: 24.545451 MHz×2 TAP
(Note: maximum cable length is 10 m)
Output image size: 659 (H)×494 (V) (full pixel readout)
ResolutionHorizontal: 500 TV lines / Vertical: 490 TV lines
Sensitivity2000 lx, F4, 3200 K
Minimum illumination35 lx (F1.4, MAX GAIN)
Signal noise to ratio50 dB
Electric shutterOFF, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/50000 second
OFF is normal exposure (frame rate) or changeable by variable shutter (minimum 1/100000 second)
Gammaγ = 1
Frame on demandMode(A) Fixed shutter mode (8 steps or variable)
(B) ONE trigger mode
Trigger inputCameraLink (CC1) *When Reset control mode CC1 and CC2 are used
Partial scanSelectable start position and height of picture grabbing in 1H step.
Power supply voltage12 ± 1 VDC
Current consumptionApprox. 190 mA (approx. 2.3 W)
*MAX partial scan 1H: Approx. 230 mA (approx. 2.8 W)
Ambient temperaturePerformance0 to +40 °C (+32 to +104 °F), less than 90 % RH (without dew condensation)
Operation10 to +50 °C (+14 to 122 °F), less than 90 % RH (without dew condensation)
Storage-20 to +60 °C (-4 to 140 °F), less than 70 % RH (without dew condensation)
Vibration endurance98 m/s² (Acceleration: constant) 10 to 200 Hz, sweep: 10 minutes, XYZ 30 minutes
Shock endurance686 m/s² (Drop test, once each top, bottom, left and right)
External dimensions29 (W)×29 (W)×38 (D) mm (Not including protrusions)
MassApprox. 50 g
