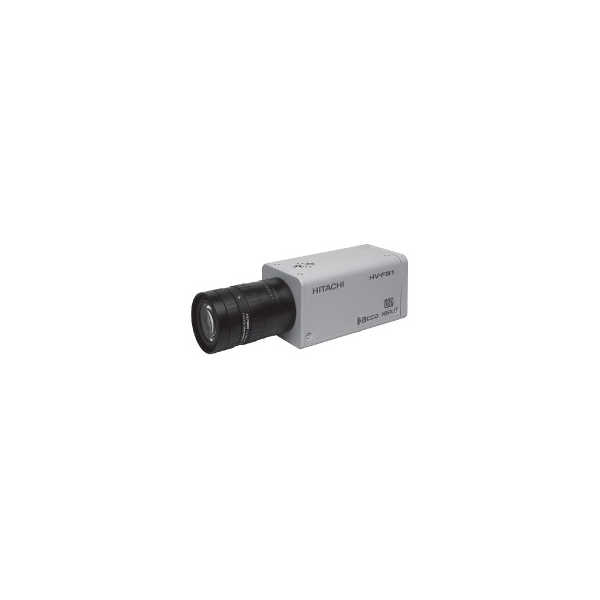

HV-F31CL

Imaging device		1/3-inch interline CCD (RGB 3CCD)
	Total pixels	1077 (H)×788 (V)
	Effective pixels	1024 (H)×768 (V)
	Pixel size	4.65 µm (H)×4.65 µm (V) (square lattice)
	Optical system	1/3-inch F2.2 prism
Sensing area		4.76mm (H)×3.53 mm (V)
Aspect ratio		4 : 3
Frame rate		30 frames per second (full pixel readout)
Scanning frequency		Horizontal: 23.72 kHz, Vertical: 29.95 Hz
Sync system		Internal/external (HD/VD auto selection)
Lens mount		C mount (Flange focal distance = 17.526 mm
Video output		Adjustable
Video output		Digital output (CameraLink) HV-F22CL/F31CL: 30bits (R: 8bit G: 8bit B: 8bit) (Medium configuration) HV-F22CL-S1/F31CL-S1: 24bits (R: 8bit G: 8bit B: 8bit) (Base configuration)
Sensitivity		2,000 lx (F5.6, 100 IRE)
Electric shutter		1/100,000 to 1/30 to 4 (second)
Power supply voltage		12 V ± 10% DC
Power consumption		Approx. 6 W
Ambient	Operation	0 to +40 °C
Ambient	Storage	–20 to +60°C
Vibration endurance		29.4m/s², 10 to 200 Hz 30 minutes each on XYZ axes
Shock endurance		490 m/s² (vertical, horizontal, once each face)
External dimensions		65 (W)×65 (H)×130 (D) mm (Not including mount protrusions)
Mass		Approx. 600 g
