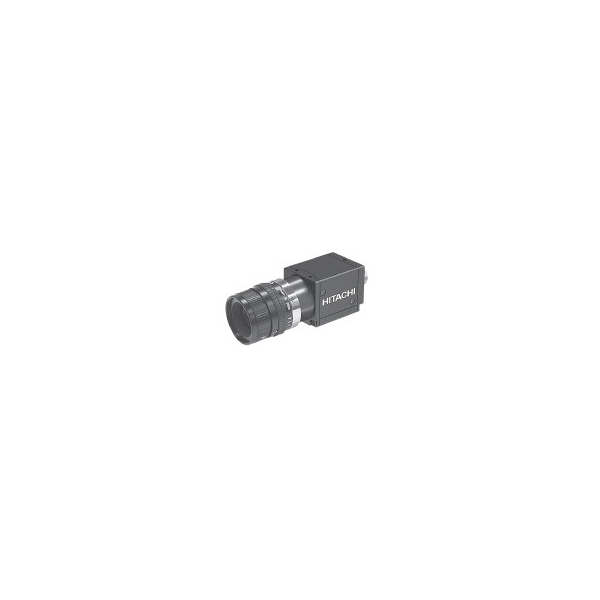

KP-F30

More info
Download
Comments

Imaging device		1/3-inch interline CCD
	Total pixels	692 (H)×504 (V)
	Effective pixels	659 (H)×494 (V)
	Pixel size	7.4 µm (H)×7.4 µm (V) (square lattice)
Sensing area		4.88 mm (H)×3.66 mm (V)
Aspect ratio		4 : 3
Frame rate		60 frames per second
Horizontal scanning frequency		31.468 kHz
Vertical scanning frequency		59.94 Hz
Sync system		Internal/external (auto selection)
Lens mount		C mount (Flange focal distance=17.526 mm
Video output		1.0Vp-p 75Ω Un-barances Video: 0.7Vp-p Sync : 0.3Vp-p negative
Horizontal resolution		500 TV Line
Sensitivity		400 lx (F5.6, with IR cut filter, 3200K)
Minimum illumination		0.7 lx (F1.4, Max. gain, without IR cut filter)
Signal noise to ratio		50 dB
External sync input		Switchable by external switch Input; HD/VD 4 to 6V DC negative, frequency deviation: ±1%, Impedance: 75Ω or high impedance Output; HD/VD 5V DC negative, Impedance: 100Ω
Electric shutter		1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/50000 second. OFF is normal exposure (frame rate)
Gamma		γ = 1
Frame on demand		(A) Fixed shutter (B) ONE trigger mode (C) Reset control mode (D) Partial scan mode (option)
Power supply voltage		12 ± 1 VDC
Power consumption		Approx. 2.1 W
Ambient	Operation	–10 to 50 °C (+14 to +122 °F) , less than 90 % RH
Ambient	Storage	–20 to 60 °C (–4 to +140 °F) , less than 70 % RH
Vibration endurance		98 m/s² (Acceleration: constant) 10 to 200 Hz, sweep: 10 minutes, XYZ 30 minutes
Shock endurance		686 m/s² (Drop test, once each top, bottom, left and right)
External dimensions		29 (W)×29 (H)×38.5 (D) mm (Not including protrusions)
Mass		Approx. 55 g
