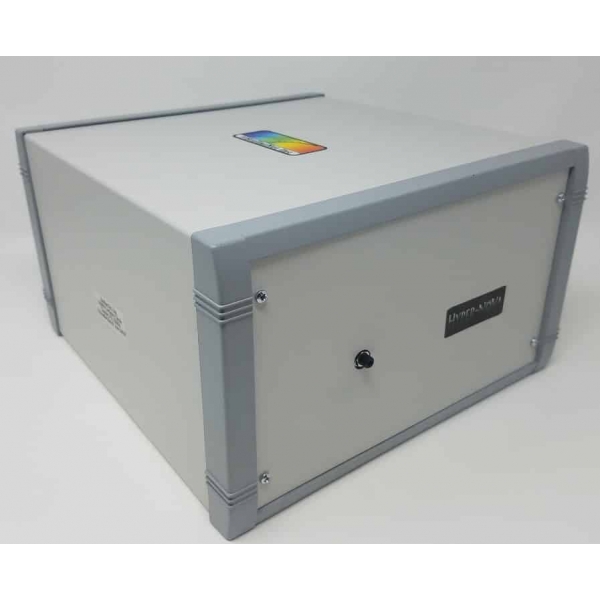

Hyper-Nova (high performance)

Highest performance Hyper-Nova spectrometers (Stellarnet)

The HYPER-Nova was designed out of necessity to bridge the gap between research lab systems costing > 100,000 € and low cost compact systems.

HYPER-Nova is ideal for use with low signal Raman spectroscopy such as those from carbon and biomolecules as well as low intensity signals from fluorescence microscopy.

HYPER-Nova spectrometers offer high performance spectroscopy measurements in a compact form factor.

HYPER-Nova spectrometers use a Low Dark Current (LDC) technology to provide lower background noise than is possible with traditional font/back- illuminated detectors.  HYPER-Nova’s CCD detector is vacuum sealed and cooled to -60 °C with peak quantum efficiencies up to 95%!

The HYPER-Nova comes in a variety of wavelength configurations including specialty configurations for Raman spectroscopy and custom low light applications:

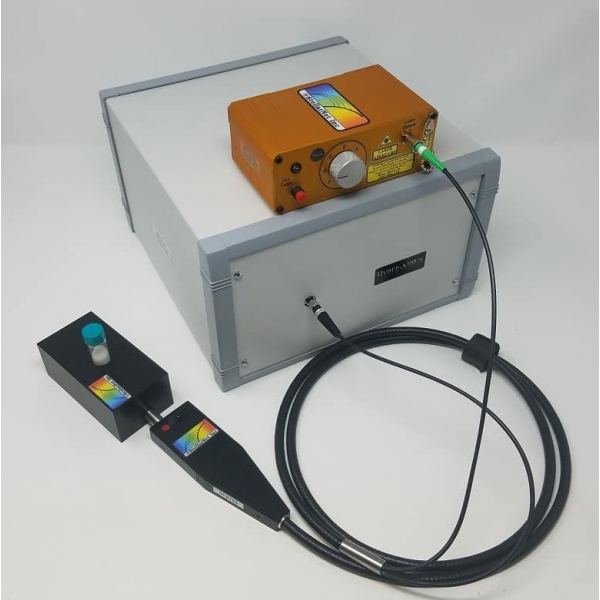

HYPER-Nova-785 Spectrometers are our highest performance 785nm Raman spectrometers and include a low dark current, vacuum sealed, and deep cooled CCD array detector tuned for 785nm Raman.
HYPER-Nova-532 Spectrometers are our highest performance 532nm Raman spectrometers and include a low dark current, vacuum sealed, and deep cooled CCD array detector tuned for 532nm Raman.
HYPER-Nova-UVIS are our highest performance broad range spectrometers and include a low dark current, vacuum sealed, and deep cooled CCD array detector tuned for 300-1100nm

New! HYPER-Nova-BIDD Upgrade your HYPER-Nova to include back illumination and deep depletion technology for increased quantum efficiency up to 95%!

Starting now and into 2020! Interchangeable Slits Upgrades are included in all HYPER-Nova optical benches to allow more application flexibility.  High Scattering samples can be measured with the smallest slit for highest resolution and weak Raman can be measure with a larger slit to allow for increased light throughput.

Features of HYPER-Nova:
- Wavelength Range: HYPER-Nova-UVIS (300-1100 nm), HYPER-Nova-532 (200-3,500 cm-1), HYPER-Nova-785 (200-2,750 cm-1)
- Resolution: HYPER-Nova-UVIS (1 nm), HYPER-Nova-532 (7 cm-1), HYPER-Nova-785 (4 cm-1)
- Diffraction Gratings: 1200 g/mm with gold surface
- Stray Light: <0.05%
- Optical Input: SMA-905 | all models include interchangeable slit upgrade
- Detector Type: LDC CCD Front (FI) or Back Illuminated (BI)
- Active Pixels: FI =1650 x 200, BI = 2000 x 256
- Pixel Size: FI= 16 x 16 μm, BI =15 x 15 μm
- Active Pixel Well Depth:  FI= 120,000 e-, BI =150,000 e-
- Quantum Efficiency (max): FI= ~68%, BI =~95%
- Signal to Noise:  >3000:1 at long exposure times
- Dimensions: 10 x 9 x 6"
- Operating System: Win XP, 7,8,10
- Interface: USB-2
- Software: Spectroscopy Pro-Tools

Available HYPER-Nova models:

Applications of HYPER-Nova:
- Raman spectroscopy
- Low light spectroscopy applications as Fluorescence spectroscopy

QE curves of HYPER-Nova:

No deje de visitar el apartado de "Accesorios" para espectrómetros donde encontrará fuentes de luz, fibras...

Disponemos también de modelos de espectrómetro compacto:

- UV-VIS-NIR el más popular, resoluciones por debajo de 1nm, gran rango: STN-BlueWave
- UV-VIS-NIR de gran rango, alta resolución y con refrigeración TE: STN-Silver-Nova
- UV-VIS-NIR con grating cóncavo (baja aberración y luz difusa): STN-BlackComet
- UV-VIS-NIR de alta resolución (rangos reducidos) (contacte con nosotros para más información)
- UV-VIS-NIR compactos de bajo coste: STN-GreenWave
- IR (900-2300nm): STN-NIR

If the spectral resolution of the standard models is not enough for your application please, contact our sales team: info@iberoptics.com.

We can offer non-standard models with resolution down to 0.05 nm.Remember to check the following accessories:
