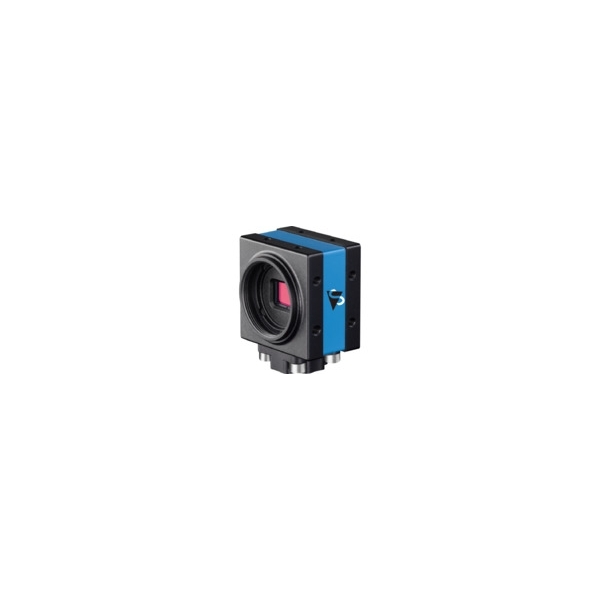

TIS-DFK-AFU420-CCS

Subject to change
General behavior
Dynamic range8/12 bit
Video formats @ frame rate (maximum)7,716x5,360 (41.4 MP) RGB32 @ 7 fps
5,424x5,360 (29.1 MP) RGB32 @ 10 fps
1,920x1,080 (2.1 MP) RGB32 @ 110 fps
5,424x5,360 (29.1 MP) RGB64 @ 6.7 fps
1,920x1,080 (2.1 MP) RGB64 @ 74 fps
Interface (optical)
IR cut filter
Sensor typeCMOS
Shutterrolling
Format2/3 inch
Pixel sizeH: 1.12 µm, V: 1.12 µm
Lens mountC/CS
Interface (electrical)
InterfaceUSB 3.0
Supply voltage4.5 VDC to 5.5 VDC
Current consumptionapprox 250 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
DimensionsH: 36 mm, W: 36 mm, L: 26 mm
Mass70 g
Adjustments
Shutter1/1,000,000 s to 1/2 s
Gain0 dB to 12 dB
White balance-2 dB to 6 dB
Environmental
Temperature (operating)-5 °C to 45 °C
Temperature (storage)-20 °C to 60 °C
Humidity (operating)20 % to 80 % (non-condensing)
Humidity (storage)20 % to 95 % (non-condensing)

Write your review

TIS-DFK-AFU420-CCS

TIS-DFK-AFU420-CCS

  • 2/3 inch CMOS sensor
  • 7,716x5,360 (41.4 MP), up to 110 fps
  • Rolling shutter
  • Manufactured by The Imaging Source
  • Windows software included
