TIS-DFK-33UX183

Subject to change
General behavior
Vision standardUSB3 Vision is the interface standard for implementing the USB 3.0 interface in industrial machine vision.
Dynamic range12 bit
Resolution5,472x3,648 (20 MP)
Frame rate18 fps
Video output format8-Bit Monochrome, 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), RGB24, YUV 4:2:2, YUV 4:1:1
Interface (optical)
IR cut filter
Sensor typeCMOS Exmor
Sensor specificationIMX183CQJ
Shutterrolling
Format1 inch
Pixel sizeH: 2.4 µm, V: 2.4 µm
Lens mountC/CS
Interface (electrical)
InterfaceUSB 3.0
Supply voltage4.75 VDC to 5.25 VDC
Current consumptionapprox 660 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g
Adjustments
Shutter50 µs to 30 s
Gain0 dB to 27.04 dB
Environmental
Temperature (operating)-5 °C to 45 °C
Temperature (storage)-20 °C to 60 °C
Humidity (operating)20 % to 80 % (non-condensing)
Humidity (storage)20 % to 95 % (non-condensing)

Write your review

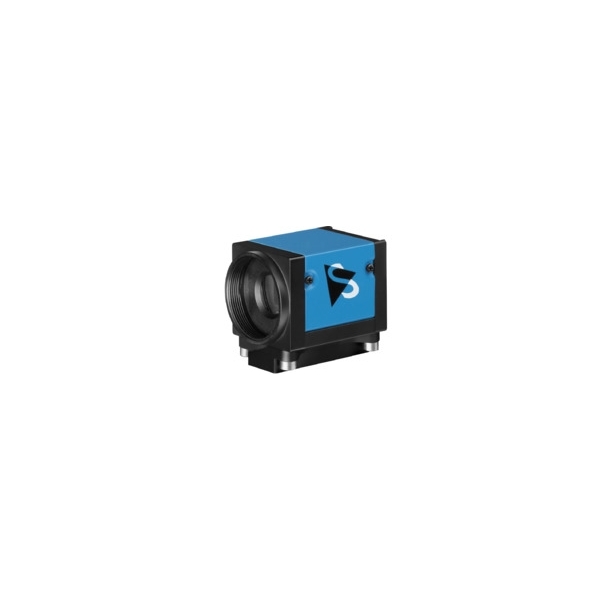

TIS-DFK-33UX183

TIS-DFK-33UX183

  • 1 inch Sony CMOS Exmor sensor (IMX183CQJ)
  • 5,472x3,648 (20 MP), up to 18 fps
  • Rolling shutter
  • Trigger and I/O inputs
  • Manufactured by The Imaging Source
  • Windows and Linux software included
