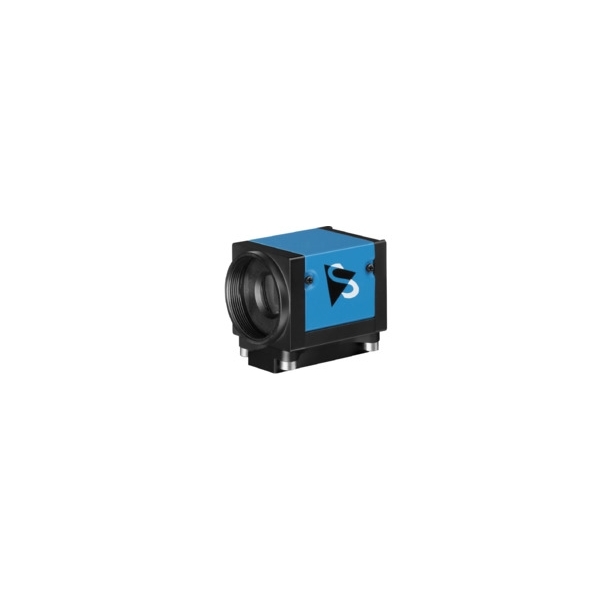

TIS-DFK-33UX178

Subject to change
General behavior
Vision standardUSB3 Vision is the interface standard for implementing the USB 3.0 interface in industrial machine vision.
Dynamic range12 bit
Resolution3,072x2,048 (6.3 MP)
Frame rate60 fps
Video output format8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), 8-Bit Monochrome, RGB24, YUV 4:2:2, YUV 4:1:1
Interface (optical)
IR cut filter
Sensor typeCMOS STARVIS
Sensor specification Sony IMX178LQJ
Shutterrolling
Format1/1.8 inch
Pixel sizeH: 2.4 µm, V: 2.4 µm
Lens mountC/CS
Interface (electrical)
InterfaceUSB 3.0
Supply voltage4.75 VDC to 5.25 VDC
Current consumptionapprox 600 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g
Adjustments
Shutter20 µs to 60 s
Gain0 dB to 48 dB
Environmental
Temperature (operating)-5 °C to 45 °C
Temperature (storage)-20 °C to 60 °C
Humidity (operating)20 % to 80 % (non-condensing)
Humidity (storage)20 % to 95 % (non-condensing)

Write your review

TIS-DFK-33UX178

TIS-DFK-33UX178

  • 1/1.8 inch Sony CMOS STARVIS sensor (IMX178LQJ)
  • 3,072x2,048 (6.3 MP), up to 60 fps
  • Rolling shutter
  • Trigger and I/O inputs
  • Manufactured by The Imaging Source
  • Windows and Linux software included
