TIS-DFK-33UX174

Subject to change
General behavior
Vision standardUSB3 Vision is the interface standard for implementing the USB 3.0 interface in industrial machine vision.
Dynamic range12 bit
Resolution1,920x1,200 (2.3 MP)
Frame rate162 fps
Video output format8-Bit Monochrome, 8-Bit Bayer (GB), 16-Bit Bayer (GB), RGB24, YUV 4:2:2, YUV 4:1:1
Interface (optical)
IR cut filter
Sensor typeCMOS Pregius
Sensor specification Sony IMX174LQJ
Shutterglobal
Format1/1.2 inch
Pixel sizeH: 5.86 µm, V: 5.86 µm
Lens mountC/CS
Interface (electrical)
InterfaceUSB 3.0
Supply voltage4.75 VDC to 5.25 VDC
Current consumptionapprox 720 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g
Adjustments
Shutter20 µs to 30 s
Gain0 dB to 48 dB
Environmental
Temperature (operating)-5 °C to 45 °C
Temperature (storage)-20 °C to 60 °C
Humidity (operating)20 % to 80 % (non-condensing)
Humidity (storage)20 % to 95 % (non-condensing)

Write your review

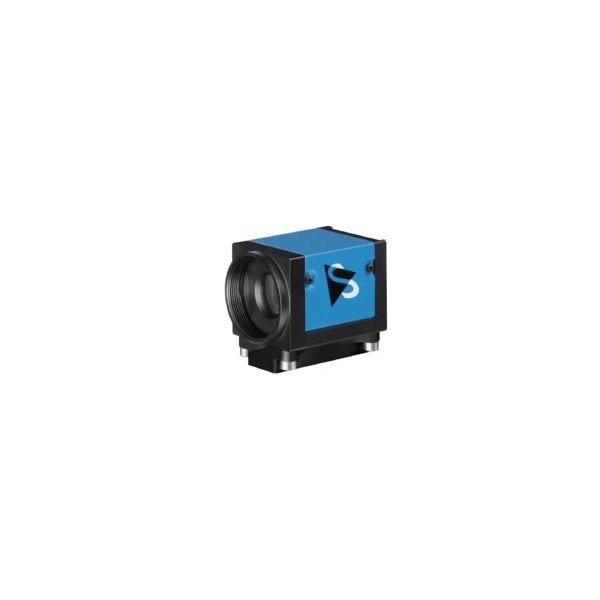

TIS-DFK-33UX174

TIS-DFK-33UX174

  • 1/1.2 inch Sony CMOS Pregius sensor (IMX174LQJ)
  • 1,920x1,200 (2.3 MP), up to 162 fps
  • Global shutter
  • Trigger and I/O inputs
  • Manufactured by The Imaging Source
  • Windows and Linux software included
