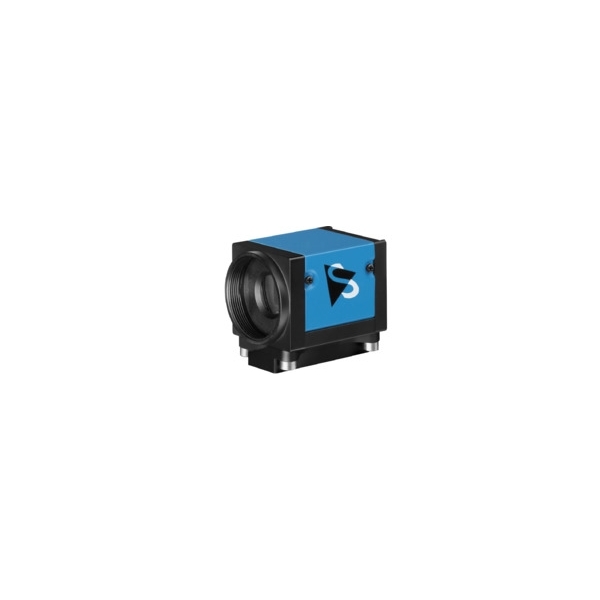

TIS-DFK-33UJ003

Subject to change
General behavior
Vision standardUSB3 Vision is the interface standard for implementing the USB 3.0 interface in industrial machine vision.
Dynamic range12 bit
Resolution3,856x2,764 (10.7 MP)
Frame rate14 fps
Video output format8-Bit Monochrome, 8-Bit Bayer (GR), 16-Bit Bayer (GR), RGB24, YUV 4:2:2, YUV 4:1:1
Interface (optical)
IR cut filter
Sensor typeCMOS
Sensor specification On Semiconductor MT9J003
Shutterrolling
Format1/2.3 inch
Pixel sizeH: 1.67 µm, V: 1.67 µm
Lens mountC/CS
Interface (electrical)
InterfaceUSB 3.0
Supply voltage4.75 VDC to 5.25 VDC
Current consumptionapprox 770 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
DimensionsH: 29 mm, W: 29 mm, L: 43 mm
Mass65 g
Adjustments
Shutter100 µs to 30 s
Gain0 dB to 5.83 dB
Environmental
Temperature (operating)-5 °C to 45 °C
Temperature (storage)-20 °C to 60 °C
Humidity (operating)20 % to 80 % (non-condensing)
Humidity (storage)20 % to 95 % (non-condensing)

Write your review

TIS-DFK-33UJ003

TIS-DFK-33UJ003

  • 1/2.3 inch Aptina CMOS sensor (MT9J003)
  • 3,856x2,764 (10.7 MP), up to 14 fps
  • Rolling shutter
  • Trigger and I/O inputs
  • Manufactured by The Imaging Source
  • Windows and Linux software included
