TIS-DFK-27AUR0135

Subject to change
General behavior
Dynamic range8/12 bit
Video formats @ frame rate (maximum)1,280x960 (1.2 MP) Y800 @ 60 fps
1,280x960 (1.2 MP) Y16 @ 60 fps
1,280x960 (1.2 MP) RGB32 @ 60 fps
Interface (optical)
IR cut filter
Sensor typeCMOS
Sensor specification ON Semiconductor AR0135
Shutterglobal
Format1/3 inch
Pixel sizeH: 3.75 µm, V: 3.75 µm
Lens mountC/CS
Interface (electrical)
InterfaceUSB 3.0
Supply voltage4.75 VDC to 5.25 VDC
Current consumptionapprox 250 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
DimensionsH: 36 mm, W: 36 mm, L: 25 mm
Mass70 g
Adjustments
Shutter1/10,000 s to 1 s
Gain0 dB to 48 dB
White balance-2 dB to 6 dB
Environmental
Temperature (operating)-5 °C to 45 °C
Temperature (storage)-20 °C to 60 °C
Humidity (operating)20 % to 80 % (non-condensing)
Humidity (storage)20 % to 95 % (non-condensing)

Write your review

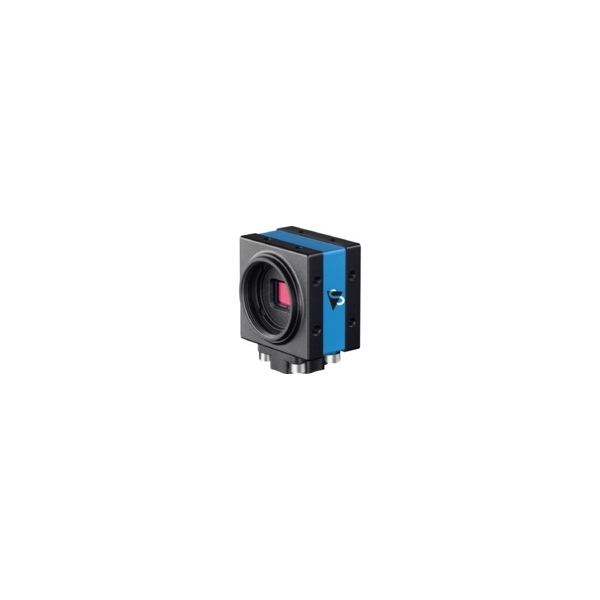

TIS-DFK-27AUR0135

TIS-DFK-27AUR0135

  • 1/3 inch On Semiconductor CMOS sensor (AR0135)
  • 1,280x960 (1.2 MP), up to 60 fps
  • Global shutter
  • Manufactured by The Imaging Source
  • Windows and Linux software included
