AUA-UNBP-434-2-OD4-12.5mm

Item Number7344
Angle of Incidence0 Degrees
Center Wavelength 434 nm Nominal
FWHM

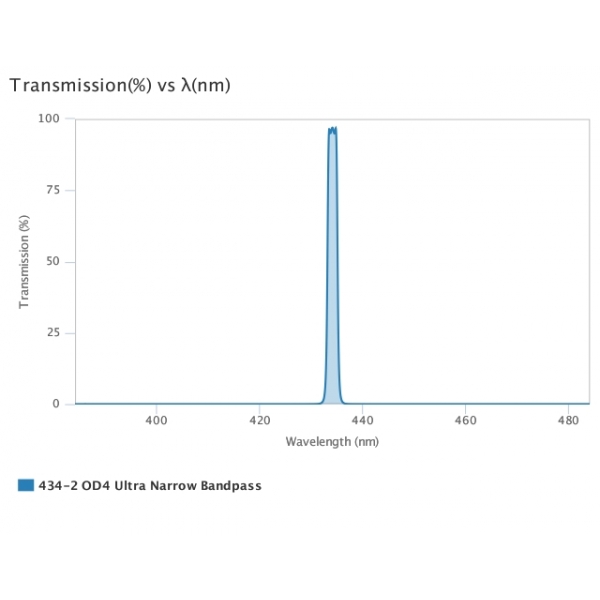

Transmission Band(s)434 nm > 90% T Absolute
Blocking Level OD4
Blocking Range(s)*OD4: 200 to 424 nm, 444 to 1100 nm
Filter DesignMulti-Cavity
Substrate Type Fused Silica
Dimensions12.5 mm Diameter
Filter Thickness2.0 mm
Assembly TypeUnmounted

Write your review

AUA-UNBP-434-2-OD4-12.5mm

AUA-UNBP-434-2-OD4-12.5mm

Alluxa Ultra-Narrow Bandpass Filter, 434 nm center wavelength, 2 nm FWHM and OD4 blocking. High performance with the narrowest bandwidth response.
