Home > Imaging systems>Optical filters>AUA-BP-683-39-OD6-usteep

AUA-BP-683-39-OD6-usteep

Item Number7145
Angle of Incidence0 Degrees
Center Wavelength 683 nm ± 2.0 nm
FWHM 39 nm Nominal

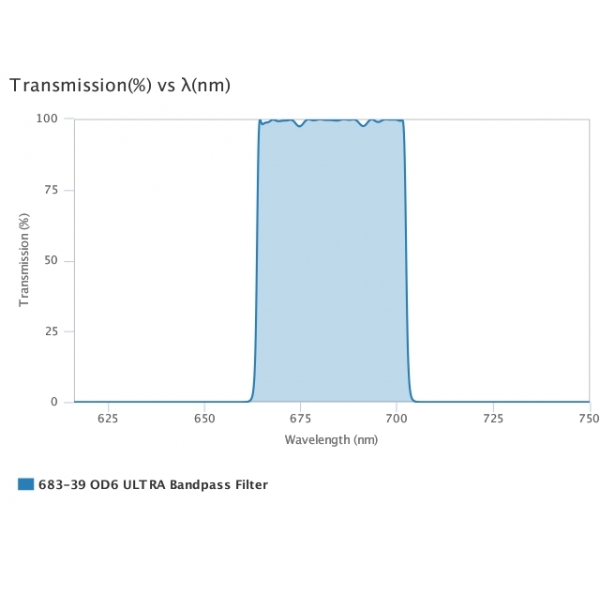

Transmission Band(s)666 to 700 nm > 95% T Average
Blocking Level OD6
Blocking Range(s)*OD6: 300 to 653 nm, 714 to 775 nm
Parallelism
Transmitted Wavefront Error
Substrate Type Fused Silica
Dimensions25.0 mm Diameter
Filter Thickness2.0 mm
Assembly TypeAnodized Aluminum Ring
Assembly Thickness3.5 mm
Main Fluorophore(s)Cy®5
Alternate Fluorophore(s)Alexa Fluor® 647, Alexa Fluor® 660, ATTO 635, ATTO 647, ATTO OXA12, BODIPY® 650/665-X, C5-Thiacyanine, CellMask™ Deep Red, CF™640R, CF™647, CypHer5 (pH 4.67), DiD, DRAQ5™, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EVOblue™-30, FluoSpheres® Dark Red, HCS CellMask™ Deep Red, HCS NuclearMask™ Deep Red, HiLyte™ Fluor 647, HiLyte™ Plus 647, LIVE/DEAD® Fixable Far Red Dead Cell Stain, MitoTracker® Deep Red, Nile Blue (EtOH), Nile Blue (MeOH), Oxazine 1, PromoFluor-647, Quasar® 670, Spectrum Far Red, SYTO® 60, SYTO® 62, Vybrant® DyeCycle™ Ruby, 5-CNF, Carboxynapthofluorescein, NirFP, ATTO 665

Write your review

AUA-BP-683-39-OD6-usteep

AUA-BP-683-39-OD6-usteep

Alluxa Bandpass Filter, 683 nm center wavelength, 39 nm FWHM, OD6 blocking. Get the stepest filtering with Series ULTRA.
