2-in-1 laser combiner for optogenetics and neuroscience

2-in-1 Laser combiner for optogenetics and neuroscience

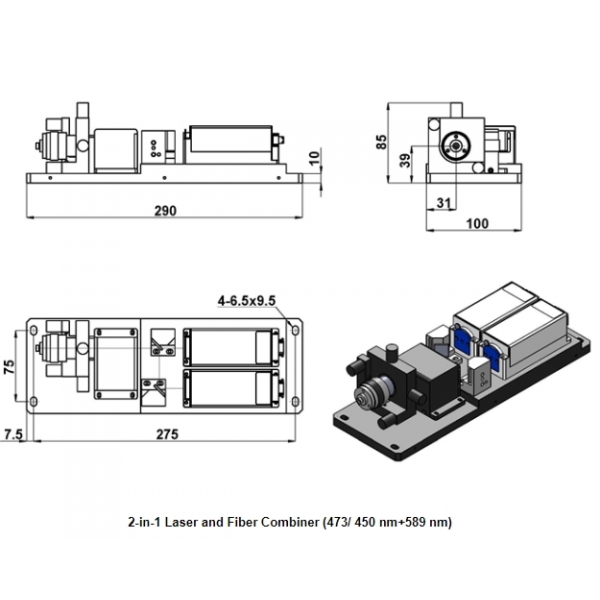

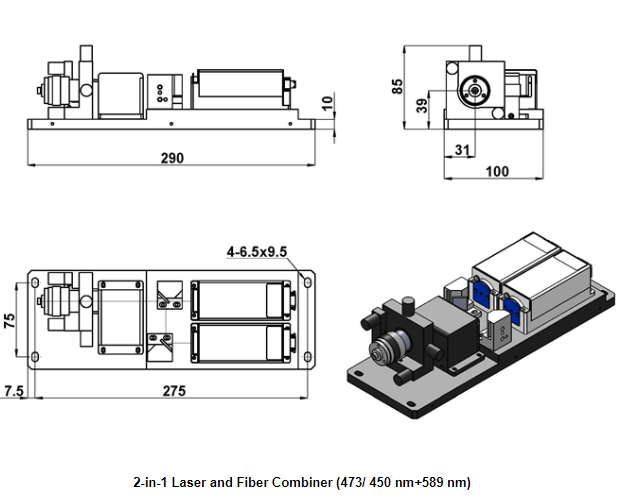

Optogenetics overcomes the disadvantages of traditional methods of the activity control for the cell and organism, and also provides a revolutionary method for the research of neuroscience. Thus, Iberoptics offers the 2-in-1 laser engine for Optogenetics and Neuroscience. Here, you can find a typical setup for this application:

System Description

Part nameDescription
CNI-MBL-S-473 / CNI-MDL-XS-450CNI MXL-S Series1 473 nm laser: Output power up to 100mW into fiber, up to 10 kHz modulation3

CNI MDL-XS Series2 450 nm laser: Output power up to 30mW into fiber, up to 100 kHz modulation3

CNI-MGL-S-589CNI MXL-S Series1 589 nm laser: Output power up to 50mW into fiber, up to 10 kHz modulation3
Optogenetics platformHeat sink & Mounting mechanics for fiber coupler
Fiber collimator & connectorCollimator and connector (FC/PC or SMA) for coupling into multi-mode fibers 50/100/200/400/600/1000μm.

1. Other wavelengths available for DPSS laser: 473, 532, 543, 589, 671 nm
2. Other wavelengths available for diode laser: 405, 450, 520, 637, 642, 650, 655, 660 nm
3. Input modulation signal req.: TTL/ Analog 0-5V

Accessories

Fiber Patch cables
MM Fiber (50-400 um)
Wavelength range: 320 nm - 2200 nm
Fiber length: 1m, 2m, other on request, and (FC, SMA905 optional)

Fiber Optic Cannula and mating sleeve
Implantable Fiber Optic Cannula
Outer Diameter of cannula: Φ1.25mm、Φ2.5mm
Cannula: Ceramic, stainless steel

Rotary Joint
Prevents fiber damage from specimen movement
Connector:FC or SMA905
Wavelength range: 320 - 2200 nm

Acusto-optic modulator
Modulation rate: 1-1MHz
Diffraction Efficiency: >75%
Wavelength range: 450-850 nm

Beam Shutter
Delay from the electrical signal: 8ms
Repetition Rate: 0-10Hz
Rising time and fall time: 0.7ms

Here you can find some research achievements with this family of optogenetic-neuroscience lasers:

- Ultrahigh accuracy imaging modality for super-localization microscopy
(Nature Methods, VOL.10,2013,335) (635nm and 488nm)
- Control of a specific motor program by a small brain area in zebrafish
(Front Neural Circuits, 2013; 7: 67) (405nm and 457nm)

Write your review

2-in-1 laser combiner for optogenetics and neuroscience

2-in-1 laser combiner for optogenetics and neuroscience

Wavelengths available for DPSS laser: 473, 532, 543, 589, 671 nm
Wavelengths available for diode laser: 405, 450, 520, 637, 642, 650, 655, 660 nm
Input modulation signal req.: TTL/ Analog 0-5V
